How To Choose The Right Gantry Crane

Although grant cranes come in large models that are helpful in several industries, there are also are small scale cranes found in warehouses and small scale industries around the globe. The crane can either be fixed height or adjustable height and is often build of either aluminum or steel depending on what use the crane will be utilized for. The way that the gantry crane is sketched is with two column beams and a cross beam. The crane has duo legs that are formed in an A-frame outline with wheels on the base to make it mobile and movable. Consumers looking to purchase gantry cranes(gruas porticos) need to understand the answer to particular queries when making a buy. This is to size the crane accurately. Height and span are the two vital areas of consideration and comprise several factors as shown below.
Gantry Crane For Sale

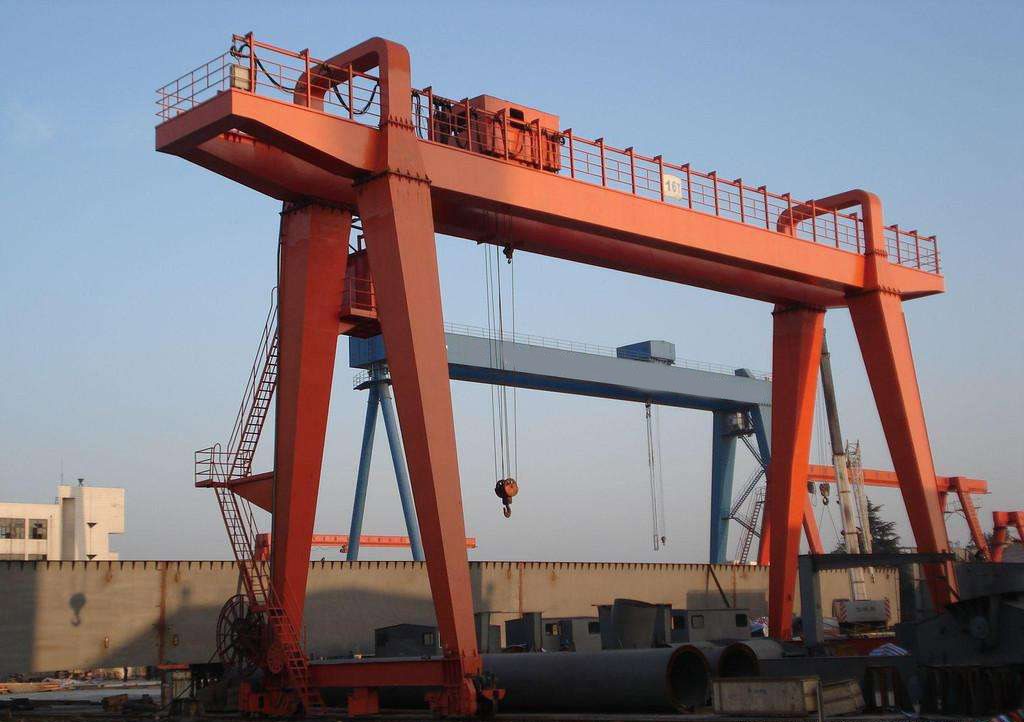

Double Girder Gantry Crane For Sale

Height considerations:

Lowest overhead barrier.

What’s the lowest item within your workplace where the gantry crane will be utilized or moved? You must be certain that it can be positioned and shifted if required in and out of your workplace and that it would conform beneath the lowest item straightly above the workstation. The lowest overhead barrier may be your roof support joists, railing, part of the HVAC system(sistema de HVAC), sprinklers, pipes, and many others.

Overall height.

The overall height of the gantry crane typically comprises the interval from the floor to the summit of I-Beam. If the crane is a variable height replica with a span of 7’6″ to 14’0” beneath I-Beam, the overall height comprising the casters is that of measurement (low to high) and I-Beam’s height.

Below beam heigh

The underneath beam height is evaluated from the floor to the base of the I-Beam. Also, deducting the I-Beam’s height from the overall height will equivalent the underneath I-Beam height.

Hook height demand.

This is likely the most evaluative item in terms of height needs. It refers to the evaluation from the ground to the interior of the base hook on the hoist at the towering point of your workload requirements that need to be hoisted as it is fastened to the hook. Make sure you regard any slack in a sling or a chain that you’ll utilize to heave your load.

Headroom

Hoists and trolleys vary in height and size. If overall height limitations are tight, you may require to shop around for a combination of hoist or trolley that will occur within your headroom demands. The merged trolley’s height and the lift down to the interior of the hoist’s base hook are known as headroom. Headroom will be evaluated from the base of the rollers on the trolley to the inner part of the base hook on the hoist (when added to the cart). If you need to be precise, attach the flange’s thickness on the I-Beam where the rollers of the trolley sit. If you’re attempting to reduce headroom, you should look for lug mounted hoist unit. This kind of hoist and trolley are scaled to one another thus lessening the headroom they’ll take up in your gantry arrangement.

Height adjustments

For adaptable height models, you may want to contemplate a height adaptation gear to make height adjustment of the joist simple. Joists can be much heavier on steel replicas and approximately around a third of the overall weight of the crane. For simple height adaptation, contemplate an aluminum crane which will be less than a half of the general mass of a steel crane( grúa de acero ), though more costly.
Single Girder Gantry Crane
Single Girder Gantry Crane

Span considerations

There are two measurements to consider on the width or span of your gantry crane. The first is the overall width, which is merely outside border to the outside edge of the legs and beams. To prevent the trolley from spinning off the base plates or shaft, the cranes have end stops. This means the cart doesn’t spin the entire length of the shaft and this must be regarded in deciding the beam’s width you need. The disposable width evaluates the interval between the termination points where the trolley will cease on either side. This width will be in the area of 2’6″ lower than the overall width of the beam.

Capacity

Ensure that the volume of your elevator doesn’t surpass your trolley or crane’s capacity. Ideally, the size of the cart, hoist, and crane are similar. From the peak down, your crane should surpass or equal your trolley’s capacity, and your trolley should exceed or equal your hoist’s size. All parts of your gantry system should exceed or equal the mass of your top freight. However, not by too much. Select a volume nearer to your cargo that will get the task done. Cranes are usually examined at hundred and twenty-five percent of rated capacity, so there’s no requirement for overkill. Your maximum freight should never surpass the rated volume. Overall, if you want to buy a high quality gantry crane, you should learn more information about it. And I think that maybe you can get more knowladge from this website: https://aicrane.com.mx/grua-portico-para-contenedores/
