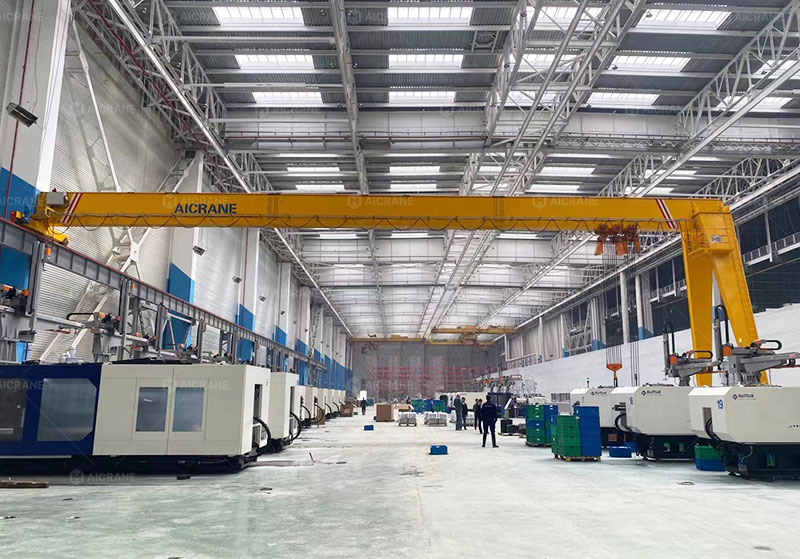

In modern industrial workshops, gantry cranes play a crucial role in handling heavy materials efficiently and safely. These cranes are complex systems made up of several key components, each performing a specific function to ensure reliable lifting, precise movement, and operational safety. Understanding how these components work together provides valuable insight into the design and performance of workshop gantry cranes, helping users operate and maintain them more effectively.
1. Structural Framework: The Foundation of Strength and Stability
At the core of every workshop gantry crane lies its steel structural framework, which provides strength and stability for all lifting operations. The structure generally consists of the main girder, supporting legs, and end beams.
-
Main Girder – This is the horizontal beam that carries the hoist and trolley. It bears the load directly during lifting, so it must be designed for high rigidity and minimal deflection. Depending on the lifting capacity and span, a gantry crane can have a single or double girder configuration.
-
Supporting Legs – These vertical structures connect the girder to the ground or rail system. In workshop applications, the legs are designed to occupy minimal floor space while providing maximum stability.
-
End Beams and Connections – These components join the legs to the main beam and distribute the forces evenly across the structure. High-quality welded joints and precision-fabricated sections ensure the crane remains steady even under dynamic loads.
The robustness of the framework ensures that the crane can safely support its rated load, even under continuous operation or slightly uneven floor conditions common in workshops.
2. Hoisting System: The Heart of the Lifting Process
The hoisting system is the heart of the gantry crane—it’s responsible for raising and lowering the load. It includes several key parts that must operate in perfect coordination:
-
Electric Hoist or Winch – Most indoor workshop gantry cranes use electric hoists due to their compact design, easy control, and smooth operation. The hoist houses the motor, gearbox, and drum assembly that power the lifting action.
-
Wire Rope or Chain – Depending on the hoist type, either wire rope or chain is used to transfer motion from the drum to the hook. Wire ropes are ideal for higher-capacity heavy duty gantry cranes, while chains are suitable for lighter-duty applications.
-
Hook Assembly – The hook connects the load to the hoist. It includes safety latches to prevent accidental disengagement and rotates to ensure precise load positioning.
-
Motor and Brake System – The motor provides the necessary torque for lifting, while the brake ensures the load remains securely held when stationary or during power failure.
-
Limit Switches – These safety devices stop the hoist automatically when the hook reaches its upper or lower limit, preventing over-travel and mechanical damage.
Together, these components convert electrical power into mechanical lifting force while maintaining full control and safety at every stage of the operation.
3. Trolley Mechanism: Precision in Horizontal Movement
The trolley system enables horizontal movement of the hoist along the main girder, positioning the load exactly where it needs to be. The trolley includes wheels, a frame, a drive motor, and a control system.
When an operator commands the crane to move, the trolley motor drives the wheels through a gear system, propelling the hoist along the beam. This motion must be smooth and precise, especially when handling delicate components or aligning loads. To achieve this, modern workshop gantry cranes often incorporate Variable Frequency Drives (VFDs), allowing speed adjustment and soft starting and stopping, which minimize load swing and mechanical stress.

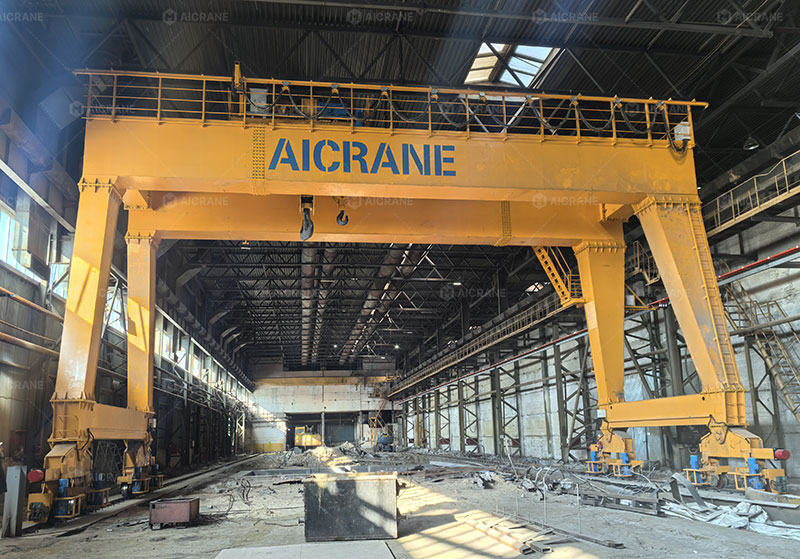

For double girder designs, the trolley sits between the girders, providing greater stability and load distribution. The accurate synchronization between hoist lifting and trolley travel ensures efficient and safe material handling.
4. Traveling Mechanism: Controlled Movement Across the Workshop
The gantry traveling mechanism allows the entire indoor gantry crane structure to move along the workshop floor or rails. It typically consists of driving wheels, motors, gearboxes, and braking systems.
-
Drive System – The motors power the wheels via gear reducers, ensuring the crane moves steadily even when loaded.
-
Wheels and Rails – Precision-machined steel wheels run along ground rails (in rail-mounted types), while rubber wheels are used in portable or trackless gantry cranes.
-
Brakes and Couplings – These ensure controlled stopping and protect the structure from sudden jerks.
In a workshop setting, accurate movement is vital for aligning loads with machinery, workstations, or storage zones. Smooth travel also reduces wear on both the crane structure and the workshop floor, extending service life.
5. Electrical and Control System: The Brain of the Crane
The electrical and control system acts as the brain that coordinates all crane movements. It ensures that lifting, trolley travel, and gantry travel operate harmoniously without interference.
Key elements include:
-
Power Supply – Electricity is supplied to the electric gantry crane through cables, festoon systems, or conductor bars. In portable types, a plug-and-play connection provides flexibility.
-
Control Modes – Operators can control the crane through a pendant control, wireless remote, or cabin control, depending on the setup and application.
-
Control Panel and Circuit Protection – The electrical cabinet houses relays, contactors, fuses, and overload protectors, ensuring safe power distribution.
-
Automation Integration – Some workshop cranes feature PLC (Programmable Logic Controller) systems for automated sequences, anti-collision functions, and precision load positioning.
The electrical system links every mechanical motion with human command, transforming operator input into coordinated mechanical action while maintaining safety and precision.
6. Safety Devices: Ensuring Secure and Reliable Lifting
Safety is paramount in any lifting operation. Workshop gantry cranes incorporate multiple safety devices to protect operators, loads, and equipment.
-
Overload Protection System – Prevents lifting loads beyond the crane’s rated capacity.
-
Limit Switches – Installed on hoists, trolleys, and crane travel systems to avoid over-travel or collision.
-
Emergency Stop Buttons – Allow immediate shutdown of all movements in case of danger.
-
Anti-Sway Systems – Advanced cranes use electronic sensors and control algorithms to minimize load swing.
-
Alarms and Lights – Audible and visual indicators warn nearby personnel when the crane is in motion.
Together, these features create a comprehensive safety network that enhances reliability and reduces accident risks.
7. Coordination of Components for Safe Lifting
While each component has its unique function, the true efficiency of a workshop gantry crane lies in how all these systems interact.
When a lifting operation begins, the control system signals the hoist motor to lift the load. The brake system releases smoothly, and the VFD adjusts the speed for steady movement. The trolley mechanism positions the load horizontally, while the gantry drive system aligns the crane with the target area. Throughout this process, limit switches, sensors, and overload devices continuously monitor conditions, ensuring everything stays within safe operating limits.
This seamless coordination ensures that the crane operates not just efficiently, but also safely – minimizing wear on components, reducing energy consumption, and protecting both personnel and materials.
8. Maintenance and Component Synchronization
For all these components to continue working safely together, regular maintenance and inspection are essential. Periodic checks on wire ropes, electrical connections, wheel alignment, and lubrication help prevent malfunctions. Proper calibration of limit switches and overload devices also ensures safety mechanisms function as intended.
Routine synchronization between electrical and mechanical parts, such as motor control tuning and brake adjustment, further improves lifting stability and safety.
Conclusion
A workshop gantry crane is much more than a collection of mechanical parts – it’s a highly integrated system designed for precision, safety, and durability. From the sturdy steel framework and reliable hoisting system to the intelligent control network and advanced safety devices, every component plays a vital role in achieving safe and efficient lifting operations.
By understanding how these components work together, workshop owners and operators can make better decisions about crane selection, operation, and maintenance – ensuring maximum performance and safety for every lift.
