Straddle carrier gantry cranes are a vital piece of equipment in modern logistics, construction, and industrial operations. These machines are designed to lift and transport large, heavy, or oversized loads with efficiency and precision. Unlike traditional cranes that rely on rails or fixed structures, straddle carriers are mobile gantry cranes capable of straddling their loads, lifting them directly from the ground, and transporting them within a defined area. Their versatility, mobility, and load-handling capacity make them an indispensable solution in ports, manufacturing, construction, and infrastructure projects.
This article focuses on the uses of straddle carrier gantry cranes across different industries and highlights their key advantages that make them a preferred choice for heavy-duty lifting and transport tasks.
What is a Straddle Carrier Gantry Crane?
A straddle carrier gantry crane is a self-propelled crane system with tall vertical frames and wheeled supports that can straddle loads such as containers, beams, or large prefabricated structures. The crane has an integrated hoisting mechanism that lifts the cargo between the supporting legs, allowing it to carry the load within its own structure.
These cranes are often compared with container gantry cranes or rail-mounted gantry cranes, but their unique advantage is independent mobility without the need for tracks or permanent installation. This makes them highly flexible for sites where cargo handling demands are spread across wide and varied areas.
Common Uses of Straddle Carrier Gantry Cranes
1. Container Handling in Ports and Logistics Centers
The most recognizable application of straddle carriers is in container terminals. These cranes can lift containers directly from trucks, trailers, or stacking areas and transport them across the yard for stacking or loading onto other vehicles. Unlike large ship-to-shore cranes or rail mounted gantry cranes, straddle carriers are mobile and can cover wider yard spaces efficiently.
-
Container stacking: They can stack containers up to three or four high, optimizing space in container yards.
-
Horizontal transport: They bridge the gap between quayside cranes and storage yards or trucks.
-
Flexible yard management: Terminals with straddle carriers enjoy flexible container organization without rigid rail infrastructure.
2. Precast Concrete and Heavy Component Handling

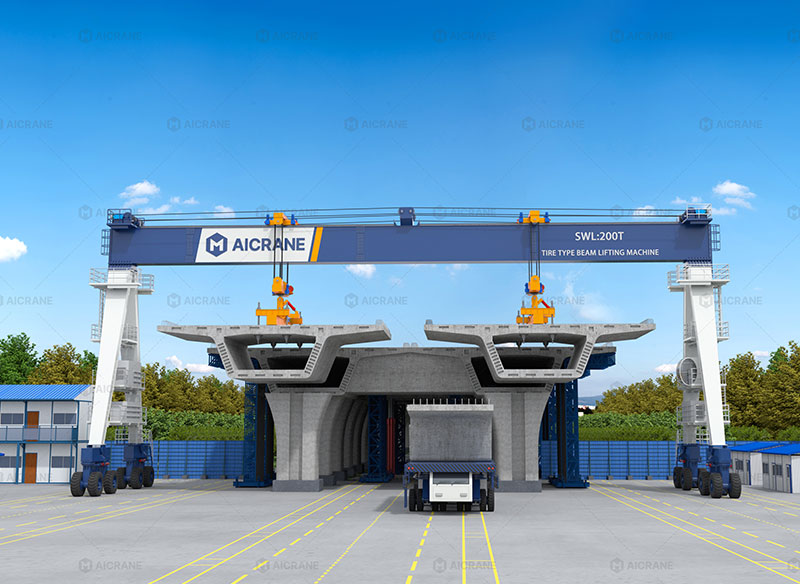

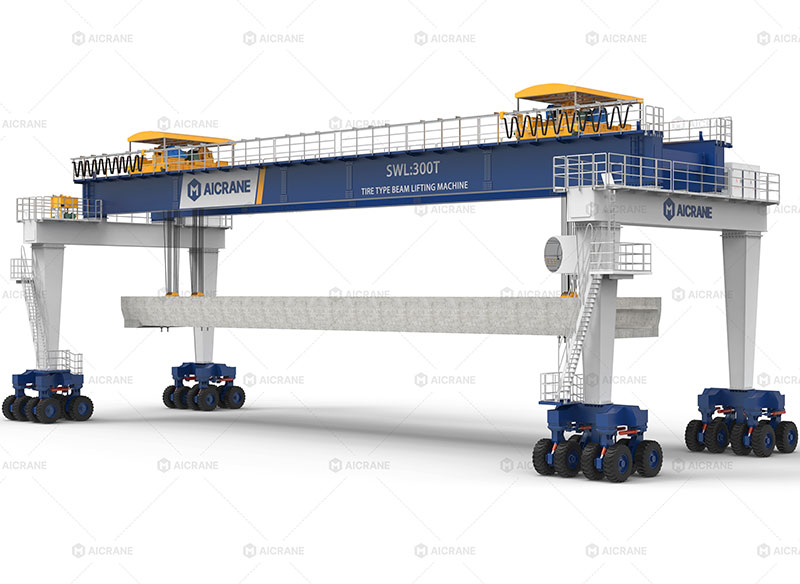

In the construction and precast industries, straddle carrier gantry cranes are widely used to lift and transport concrete beams, bridge segments, girders, and precast panels. These structures are heavy, long, and cumbersome to handle with conventional cranes.
-
Bridge construction: Carriers can move precast bridge segments from casting yards to erection sites.
-
Infrastructure projects: Large tunnel segments, wind turbine parts, or structural modules can be handled safely.
-
Flexibility on-site: They can navigate around construction sites, delivering components exactly where needed.
3. Steel and Manufacturing Plants
Steel manufacturers and heavy industry plants often rely on straddle carrier gantry cranes for steel coil, plate, and structural steel handling.
-
Efficient movement: They transport materials from storage areas to processing lines.
-
Space optimization: By stacking materials vertically, they reduce ground storage needs.
-
In-plant logistics: The crane integrates smoothly into production cycles, reducing downtime.
4. Shipyards and Boat Handling

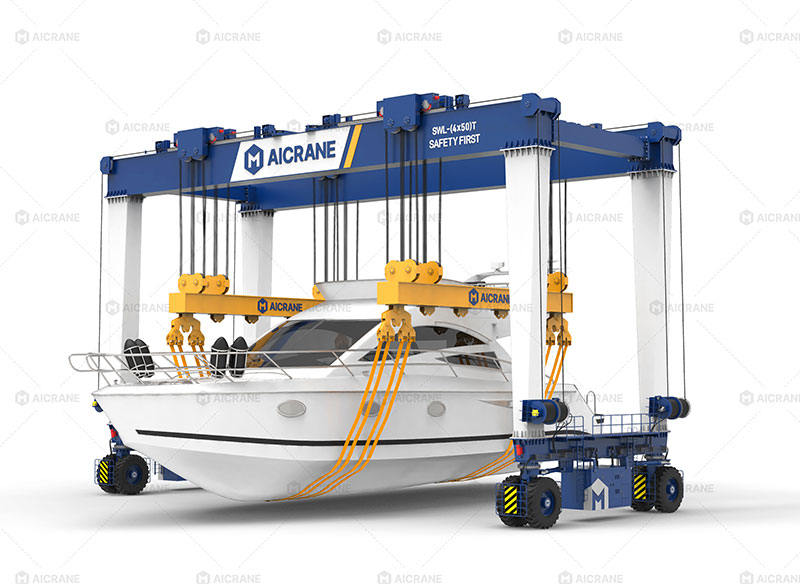

In marine industries, specialized straddle carrier gantry cranes – sometimes referred to as mobile boat hoists – are used for lifting and transporting boats of various sizes.
-
Boat lifting: Vessels can be lifted directly out of the water for maintenance, repair, or storage.
-
Transport flexibility: Boats can be safely moved across the yard or positioned in storage areas.
-
Adaptable capacity: These cranes can be designed to handle small fishing boats up to large yachts or commercial vessels.
5. Infrastructure and Large-Scale Construction Projects
Straddle carriers also play an essential role in tunnel construction, wind energy projects, and power plant construction. Their ability to lift oversized and irregular loads makes them ideal for moving specialized equipment and prefabricated modules.
Key Advantages of Straddle Carrier Gantry Cranes
1. Exceptional Mobility and Flexibility
One of the most significant advantages of straddle carrier gantry cranes is their self-propelled mobility. Unlike rail-mounted gantry cranes, these rubber tyre gantry cranes can operate anywhere within the yard or construction site without being limited to fixed tracks. This mobility:
-
Reduces the need for permanent infrastructure.
-
Allows them to operate in changing or temporary worksites.
-
Improves operational flexibility in busy yards and terminals.
2. Efficient Use of Space
Straddle carriers can stack loads vertically and maneuver in tight spaces. In container yards, they can stack containers three or four high, optimizing available ground space. In factories, they allow dense storage arrangements while still providing easy access to materials.
3. Cost-Effective Operations
Compared with fixed gantry systems or large rail-mounted cranes, straddle carriers are often more cost-efficient in terms of initial investment and operating expenses. Their ability to combine lifting and transport functions reduces the need for multiple machines such as forklifts, trucks, and cranes.
-
Lower infrastructure requirements (no rails or permanent tracks).
-
Reduced labor costs through multifunctional operation.
-
Less energy consumption compared with very large gantry cranes.
4. Versatility Across Industries
Few lifting solutions are as versatile as straddle carrier gantry cranes. They can be adapted for containers, precast concrete, steel products, heavy machinery, and boats. With custom engineering, they can handle oversized and irregular loads that other lifting equipment cannot accommodate.
5. Improved Safety and Load Stability
The design of straddle carriers ensures that loads are lifted securely between the supporting legs, minimizing the risk of tipping or swinging. Advanced models often include anti-sway technology, load monitoring systems, and remote-control operation to further enhance safety.
-
Stable load positioning reduces accidents.
-
Ergonomic control systems improve operator safety.
-
Adaptable lifting mechanisms ensure compatibility with diverse cargo types.
6. Reduced Bottlenecks in Operations
By integrating both lifting and transport functions, straddle carrier gantry cranes reduce the need for multiple handling steps. For example, in container yards, containers can be picked up directly from trucks and placed in storage without additional equipment. This efficiency reduces bottlenecks, accelerates workflows, and increases throughput.
7. Customizable Design Options
Manufacturers offer straddle carrier gantry cranes in various capacities, dimensions, and configurations. Customers can choose models with electric or diesel power, different lifting heights, and specialized attachments depending on their applications. This customization ensures that every industry gets a solution tailored to its exact needs.
Conclusion
Straddle carrier gantry cranes have earned their place as a reliable and versatile solution in logistics, construction, manufacturing, and marine industries. Their ability to combine lifting, stacking, and transport functions makes them highly efficient in handling containers, precast concrete elements, steel products, boats, and large construction components.
With advantages such as mobility, space efficiency, cost-effectiveness, safety, and adaptability, straddle carriers provide businesses with a competitive edge in managing heavy and oversized loads. Whether deployed in bustling container terminals, bridge construction projects, or shipyards, straddle carrier gantry cranes represent a practical and future-proof investment for industries that demand reliable heavy-duty lifting and transport solutions.
